Tapping Heads

Kasthuri offers Auto Feed Tapping Head with self feeding tap and auto reversing for high precision and productivity operations. Kasthuri tapping head also has a better tap tool life and consumes less power.

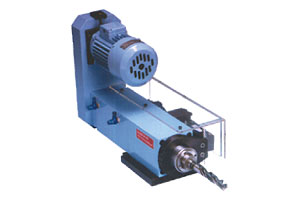

KMB Auto feed tapping head housing is made up of S.G. Iron. Hardened and ground spindle is provided which is assembled in a quill and guided in between precision bearings. Separate motor is provided to drive the spindle through the timing belt.

Specifications of Tapping Heads

  KMB - 8 KMB - 16
Motor Power(RPM) 0.55KW/1000 1.1KW/750
Spindle Speed(PPM) Single Speed(According to Tap Size) Single Speed(According to Tap Size)
Pitch Control By Lead Screw & Nut By Lead Screw & Nut
Spindle Travel 80mm 50mm
Max. Tapping Capacity M 8 IN STEEL M 16IN STEEL
